XY-1set Professional Recording And Livestreaming SET

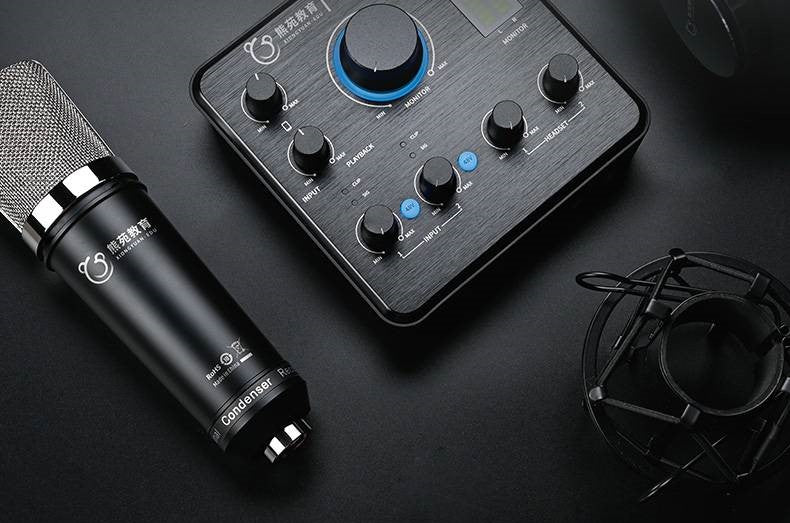

Jointly launched by "Takstar" and "Xiongyuan Education", the XY-1SET professional live recording package is designed to meet the needs of professional recording, vocal recording, musical instrument recording and post-dubbing of movies and television. The package includes XY-S1 network dubbing professional sound card, XY-M1 recording microphone, XY-E1 professional closed monitoring earphone and related accessories.The XY-S1 sound card is a 4-in-4-out USB network dubbing professional sound card. It is driven by AS102.0, with ultra-low latency. It supports 24bit/96KHz high-precision sampling.

It is compatible with a variety of Windows operating systems. It can load various racks for professional recording, musical instrument recording, film and television post-dubbing, etc. The XY-M1 microphone features a large gold-plated diaphragm and a high-sensitivity design that captures rich sound details.Designed for professional recording, the XY-E1 earphones feature high fidelity, Ø50mm Nd-Fe-B drive units, wide frequency response, and large dynamic sound performance. The equipment is equipped with high-grade aluminum alloy box, which is convenient for outdoor carrying and use.

Features:-

XY-S1 network dubbing professional sound card
> Designed for professional recording, vocal recording, instrument recording and video dubbing, compatible with Windows 10 and below;
> The driver has passed the "WHQL Microsoft Certification" to ensure the stability and compatibility between the sound card and the Microsoft system;
> Adopt USB2.0 data transmission standard, high-speed transmission, ultra-low latency;
> Support 24bit/96 KHz high-precision sampling, recording acquisition and sound playback are clearer;
> Adopting ASIO 2.0 drive standard, it can run more than two VST racks at the same time to realize network live broadcast and professional recording;
> Powerful external playback and internal recording functions, support live broadcast with microphone, and live broadcast of multi-person chat without card microphone;
> Support MME, WDM and DirectSound to easily realize sound signal transmission between sound card and computer;
> With microphone, earphone, speaker output, mobile phone recording and other volume control adjustment;
> Equipped with two hybrid microphone and instrument input interfaces, which can be connected to microphone and instrument equipment respectively;
> With an Ø 3.5mm mobile phone interface, it can realize synchronous live broadcast of computer and mobile phone;
> With two left and right channel Φ6.3 mm TRS balanced output interfaces, it can be connected to active speakers.

XY-E1 Professional Enclosed Monitoring Headset
> Superior sound pressure processing capability, high-fidelity restoration of the essence of sound, to meet the needs of professional recording;
> Fully enclosed cavity design can effectively block external noise and create a quiet listening atmosphere;
> Adopt Ø50mm Nd-Fe-B drive unit, with wide frequency response and large dynamic sound performance;> Comfortable earmuff design relieves pressure and improves airtightness for more powerful bass;
> The application of ergonomic design is suitable for wearing different human head shapes;
> The ear shell can be turned outward by 180 °, which can meet the needs of unilateral monitoring;
> Foldable body and separation line design, easy to carry.

XY-M1 Recording Microphone
> With gold-plated large diaphragm sound head, it has a wide frequency response to ensure the true restoration of sound;
> Cardioid pointing pickup, accurate pickup direction, effectively reduce the pickup of environmental noise;
> High sensitivity design, capture rich sound details, sound performance is more in place;
> The background noise is optimized to be easily competent for various recording and live broadcast environments;
> One-key low-cut function, greatly reduce the background noise below 100Hz, and make the recorded sound more pure;
> Sensitivity attenuation switch, which can withstand higher sound pressure level to prevent sound overload distortion;> It is equipped with a special metal shockproof frame, which has excellent shock isolation performance and prevents the transmission of vibration sound.
> Equipped with windproof cotton to effectively eliminate noise interference such as human voice "pop" and air flow.

Technical Specs:-

XY-S1 network dubbing professional sound card
> Mic/Line Input 1-2
> Frequency response: 20Hz-20KHz (± 1dB)
> Dynamic range: 80dB (A-weighted)
> Signal-to-noise ratio: 75dB (A-weighted)
> THD plus noise: < 0.025% (-72dB)
> Intermodulation distortion: -77dB @ 1KHz
> Input impedance: inst in, 6.8KΩ, typ.
> Microphone input: 6.8KΩ, typical
> Adjustable gain: > 50dB
> + 54dB total gain range

Line/Style Input 3-4

Frequency response: 20Hz-20KHz (± 1dB)
> Signal-to-noise ratio: 100dB (A-weighted)
> THD plus noise: < 0.0031% (-90dB)
> Dynamic range: 97dB (A-weighted)
> Maximum input level: + 0dB Gain: 0dB

Line output L/R

Frequency response: 20Hz-20KHz (± 1dB)
> Dynamic range: 98dB (A-weighted)
> Signal-to-noise ratio: 102 dB (A-weighted)
> THD plus noise: < 0.0125% (-78 dB)
> Intermodulation distortion: -65dB @ 1KHz
> Output impedance: 75 Ω
> Load impedance: 32-600Ω
> Maximum output level: + 1.2 dBV

Headphone Outputs 1-2

Frequency response: 20Hz-20KHz (± 1dB)
> Dynamic range: 99dB (A-weighted)
> SNR: 103 dB (A-weighted)
> THD plus noise: < 0.0056% (-85 dB)
> Intermodulation distortion: -75dB @ 1KHz
> Power: 90mW/100Ω
> Output impedance: 75 Ω
> Load impedance: 32-600Ω

Interface details
> Mobile phone interface: Φ 3.5mm
> Accompaniment interface: Φ 3.5mm
> Microphone interface 1: XLR + Φ 6.35mm
> Microphone interface 2: XLR + Φ 6.35mm
> Headphone connector 1: Φ 6.35mm
> Headphone connector 2: Φ 6.35mm
> Speaker interface: Φ 6.35mm (L + R)
> Power interface: DC 12V/1A
> Data interface: USB 2.0

Comprehensive parameters
> Data transfer: USB 2.0
> Sampling rate: 44.1-96KHz/24bit
> Power specification: DC 12V/1A (external power supply)
> Operating temperature range: 0-40 ℃
> Product size: 140 * 140 * 33.5mm (L * W * H)
> Net weight: about 465g

XY-E1 Professional Enclosed Monitoring Headset
> Unit type: moving-coil
> Unit diameter: Ø 50mm
> Unit Impedance: 42Ω ± 30%
> Frequency response: 10Hz ~ 20kHz
> Sensitivity: 100 ± 3dB at 1kHz
> Maximum power: 2000mW
> Rated power: 1000mW
> Connecting wire: Ø 4mm × 2.2m
> Connecting plug: Ø 3.5mm stereo gold-plated plug + Ø 6.3mm stereo gold-plated conversion plug
> Product weight: about 310 G

XY-M1 Recording Microphone
> Sound head: Ø34mm gold-plated large diaphragm sound head
> Directivity: heart-shaped direction
> Frequency response: 20Hz-20kHz
> Sensitivity: -33dB ± 3dB (0dB = 1V/Pa at 1 KHz)
> Equivalent noise level: ≤ 20dB (IEC 581-5)
> Peak sound pressure level: 130dB (THD ≤ 1% at 1KHz)
> Output Impedance: 100 Ω ± 30% (at 1 KHz)
> Sensitivity attenuation: -10 dB
> Low cut: 100Hz 10dB/Oct
> Operating voltage: 48V phantom power
> Unit size: Ø 50mm X 188mm> Monomer weight: about 480 G
